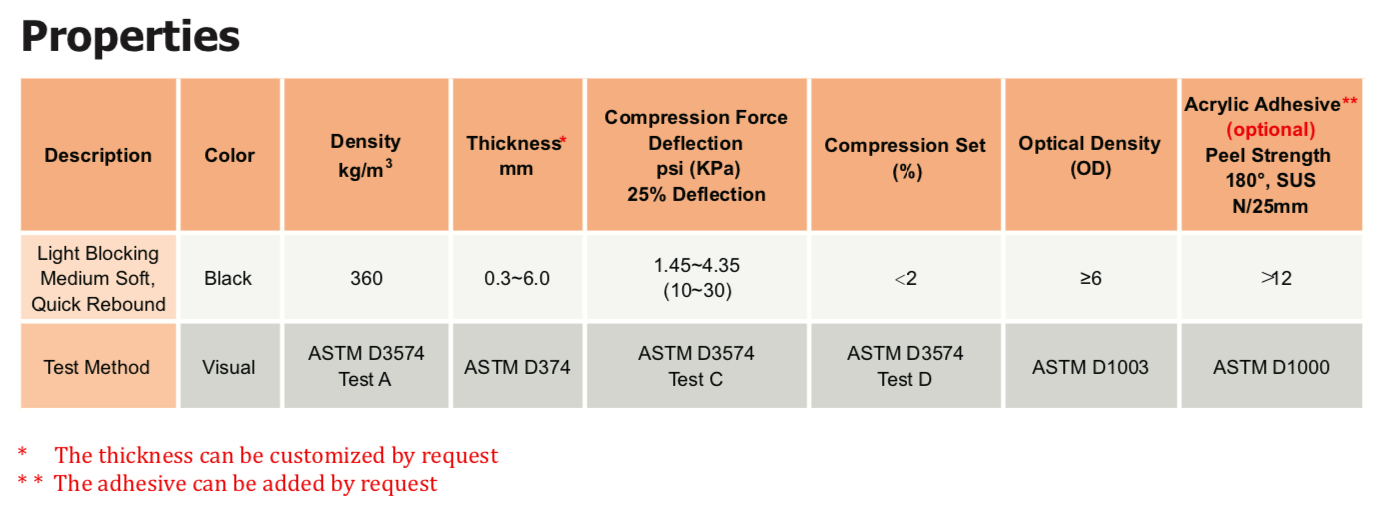

Polyplate™ Microcellular Polymer Foam PF-B Series is a available in variety of density foam options with a black PET substrate for light blocking, cushioning, protective sealing and long-term gap filling in electronic device applications. PF-B series foam has very low compression set, high sealing performance and excellent impact absorption.
| Series | PFxxx-ES0B | PFxxx-S0B | PFxxx-S1B | PFxxx-S2B | PFxxx-S3B | PFxxx-S4B |
|---|---|---|---|---|---|---|
| Feature |
Very Soft Seal Series, Slow Rebound |
Ultra-Soft/ Low Density/Slow Rebound |
Super Soft/Slow Rebound |
Soft/Slow Rebound |
Medium Soft/Quic k Rebound |
Hard/Quick Rebound |
|
Standard Thickness* |
0.1/0.3/0.5/ 0.7/1.0 |
0.4/0.5/0.7/ 1.0/1.5/2.0 |
0.15/ 0.3/0.5/0.7/1.0/1.5 |
0.15/0.2/0.3/0.4/0.5/ 0.7/1.0/1.5/2.0/3.0 |
0.3/0.5/0.7/ 1.0/1.5/1.6/2.0/3.0 |
0.5/1.0/1.5/2.0 |
| Compression set | <2 | <2 | <2 | <2 | <2 | <2 |

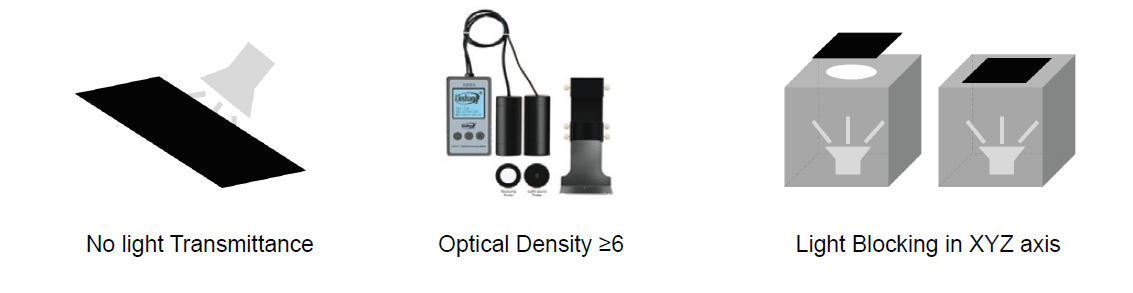

| Optical Density (OD) | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
|
Acrylic Adhesive** (Optional) Peel Strength 180°,SUS N/25mm |
>12 | >12 | >12 | >12 | >12 | >12 |
* The thickness can be customized by request
* * The adhesive can be added by request
Polyplate™ 80160 Series Light-Blocking Foam Tape is a kind of double-sided tape, which consists of special foam and acrylic adhesive. It features high impact absorption, excellent light blocking performance and high sealing performance.
| Item | Unit | Typical Value | Test Method | |
|---|---|---|---|---|
| Color | - | Black | Visual | |
| Thickness | mm | 0.1 ~0.2 | ASTM D374 | |
| 180° Peel Strength | SUS | N/inch | ≥ 15 | ASTM D3330 |
| Holding Power | 85℃，1kg | ＞24H | ASTM D1002 | |
| Optical Density | ≥ 6 | ASTM D1003 | ||
