PF-ES0 Series Microcellular Polymer Foam

Polyplate^TM Microcellular Polymer Foam PF-ES0 Series is a very soft, low density and slow rebound PU foam for dust, liquid, light and sound sealing in electronic device applications. It has excellent compressibility and comformability. ES0 series has very low compression set, high sealing performance, excellent impact absorption, and is very suitable for using as LCD/TP anti-pooling(Moire) solutions as well as speaker gaskets, camera lens seals, connector cushion pads, battery pads, etc.

Tape Materials

Tapes

PSA for Foldable Screen

Removable Tape

EMl Tapes and Gaskets

Heat / UV Activation Bonding Film

Thermal Materials

Thermal Interface Materials (TIMs)

Thermal Spreading Sheet

Nano Thermal Insulation Film

EMI/EMC Materials

EMI Shielding and Grounding Tapes

Electromagnetic Wave Absorbing Solutions

Foam Materials

Polyurethane (PU) Foam

Acrylic Foam

Acrylic Foam PA Series

Water-Proof Foam

Light-Blocking Foam

Acoustic Damping Foam

Silicone Foam/Rubber

Conductive Foam

Ultra-soft Foam

Ultra-soft Foam Tape

Label Materials

Labels

Very Soft Seal Series, Slow Rebound

Polyplate™ 80-SF Series Microcellular Polymer Foam Tape is the super softest, low density and slow rebound foams for cushioning and includes a double-sided acrylic adhesive tape, protective sealing and long-term gap filling in electronic device applications. SG 80-SF foam tape has very low compression set, high sealing performance and excellent impact absorption.

Application

Avoid distortion and noise when operating the tablet by touch.
Play a protective sealing role.
Ultra-low compression rebound to avoid screen damage.

Properties

Item		Unit	Typical Value	Test Method
Color		-	Black	Visual
Thickness		mm	0.35 ~1.0	ASTM D374
180° Peel Strength	SUS	N/inch	≥ 6	ASTM D3330

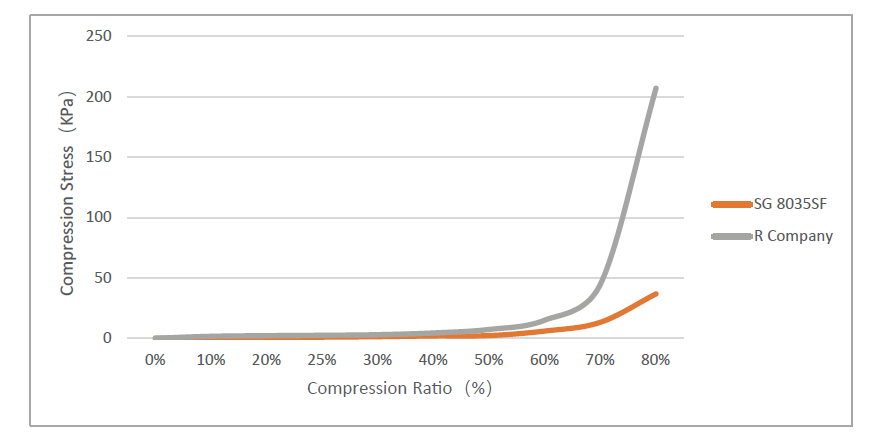

25% Compression Force Deflection		KPa	0.89	ASTM D3574
50% Compression Force Deflection		KPa	2.23	ASTM D3574

Features

SG proprietary foaming technology bring in acrylic foam with excellent viscoelasticity, exhibits excellent properties such as low density and low compression set.
Excellent adhesion on a wide range of material surfaces with high adhesion force.
Thickness adjustable - the product thickness can be designed according to the actual needs.
SG patent protection (No.202420618145.7).

Very Soft Seal Series, Slow Rebound

PolyplateTM Microcellular Polymer Foam PF-ES0 Series is a very soft, low density and slow rebound PU foam for dust, liquid, light and sound sealing in electronic device applications. It has excellent compressibility and comformability. ES0 series has very low compression set, high sealing performance, excellent impact absorption, and is very suitable for using as LCD/TP anti-pooling(Moire) solutions as well as speaker gaskets, camera lens seals, connector cushion pads, battery pads, etc.

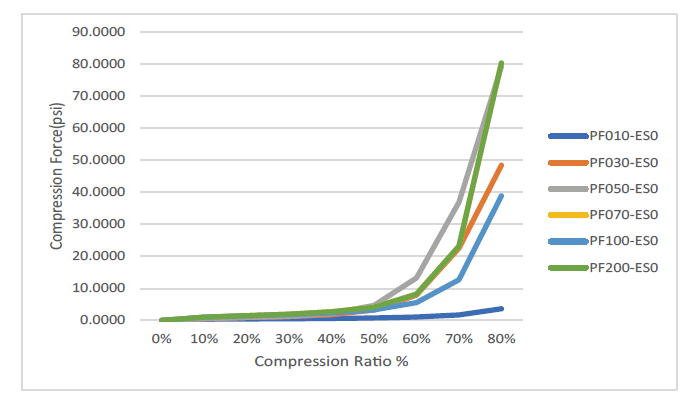

P/N	Thickness With Liner (mm)	Density (kg/m3)	25% Compression Force Deflection (psi)	Compression Set (%)	Continuous Use Temperature (℃ )	Suggested Max. Compression Ratio (%)
PF010-ES0	0.1	100	0.6	<3	70	80
PF030-ES0	0.3	100	0.6	<3	70	80
PF050-ES0	0.5	120	1.4	<3	70	80
PF070-ES0	0.7	120	1.6	<3	70	80
PF100-ES0	1	120	1.6	<3	70	80
PF200-ES0	2	120	1.6	<3	70	80
Test Method		ASTM D3574		ASTM D3574	SAE J-2236

Note: The thickness can be customized by request

Applications

Applied for sealing, gasket, gap filling, dust proofing, shock and vibration absorption, as well as light blocking,and heat insulation for precise elctronic components and devices.
It can be applied on touch panel modules to protect LCM via absorbing and distributing impact energy to avoid pooling or Moire Phenomena on touch screen.
