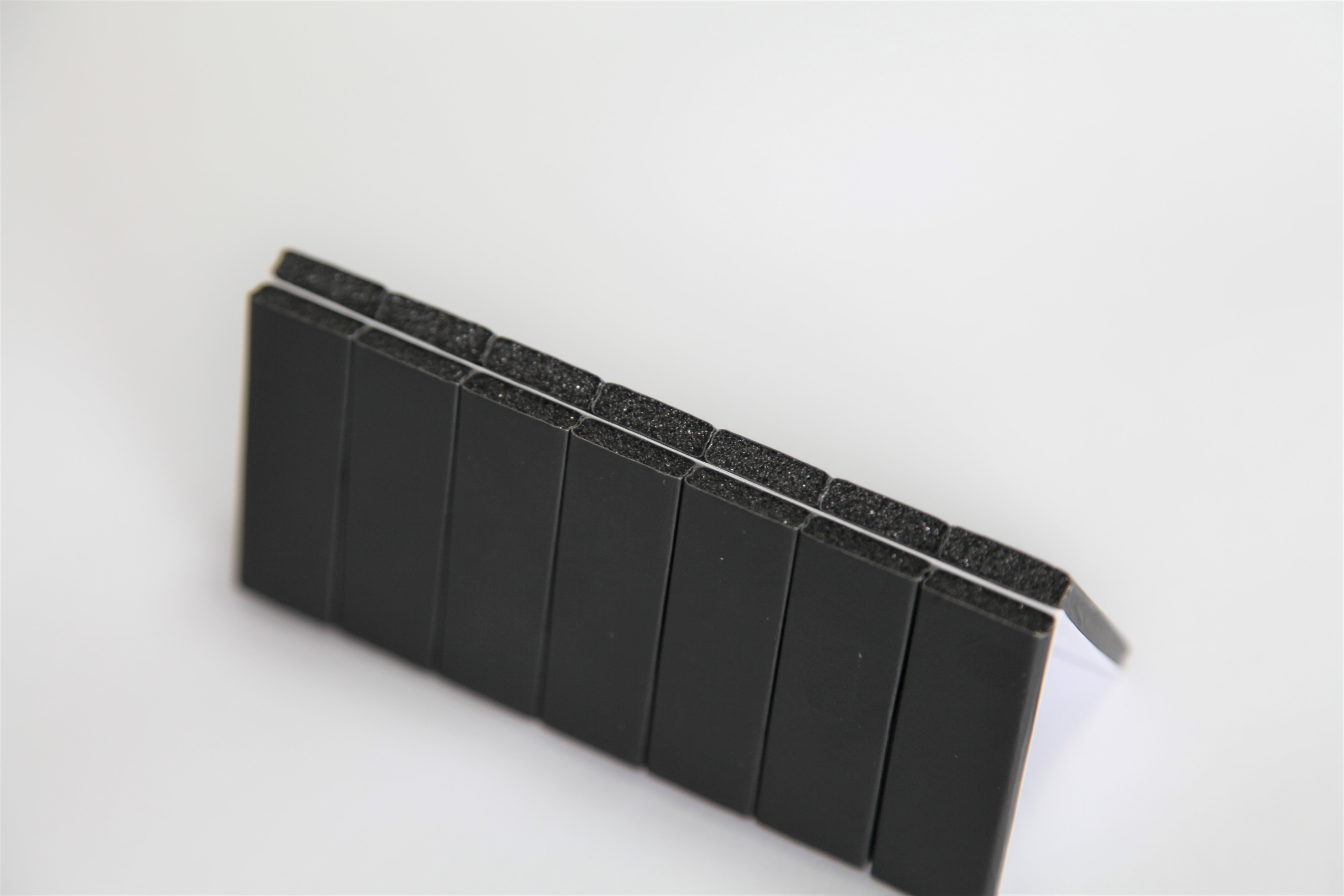

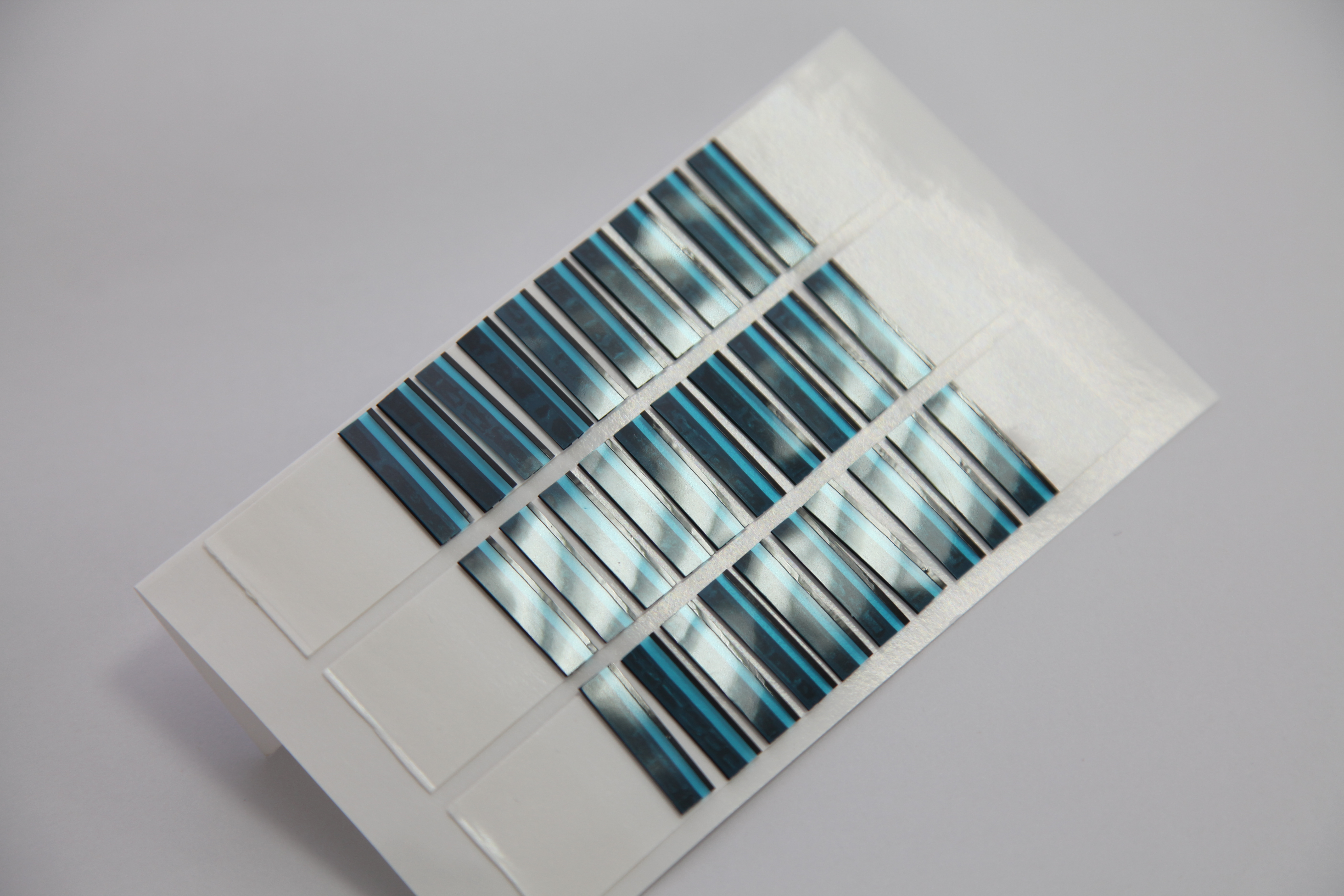

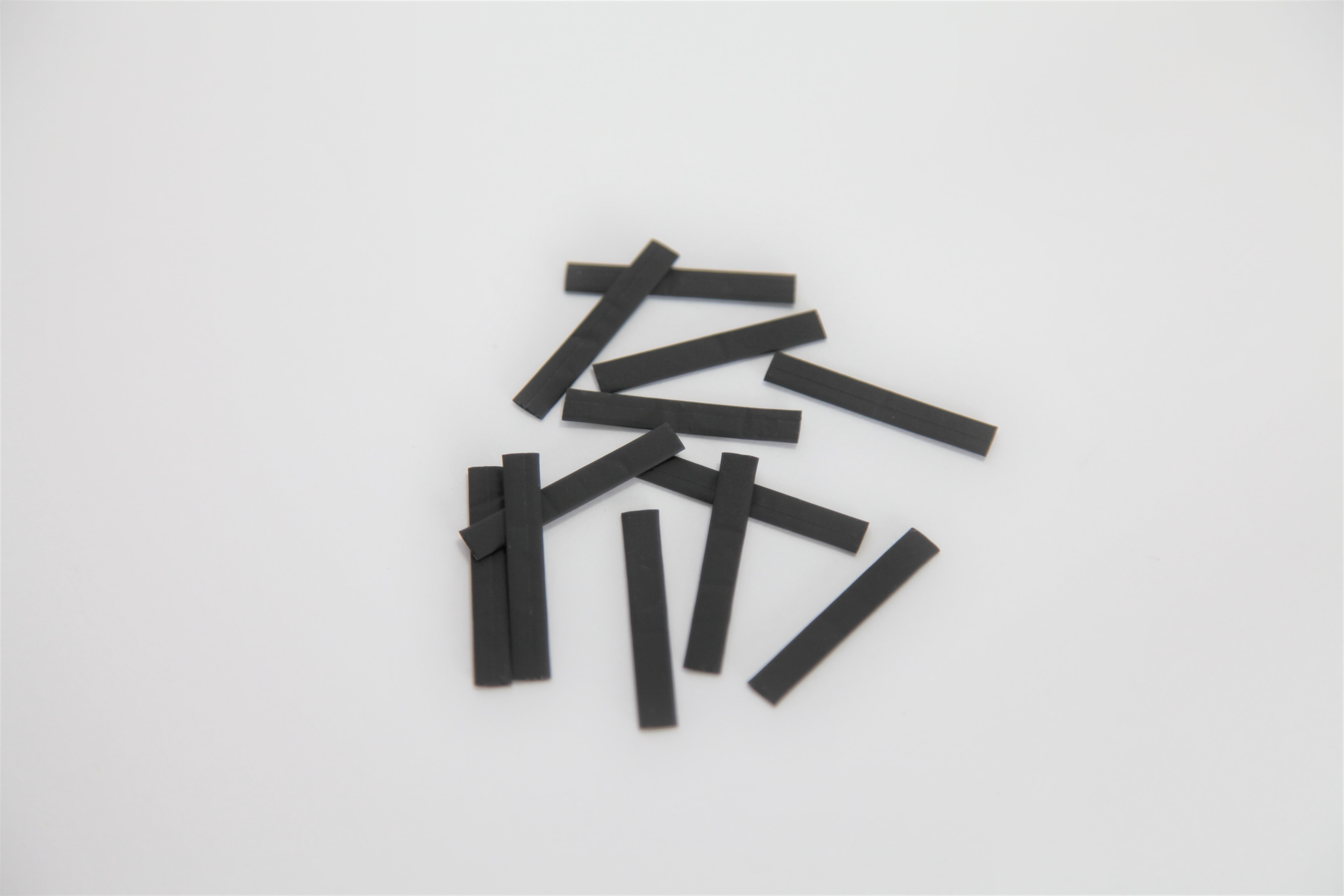

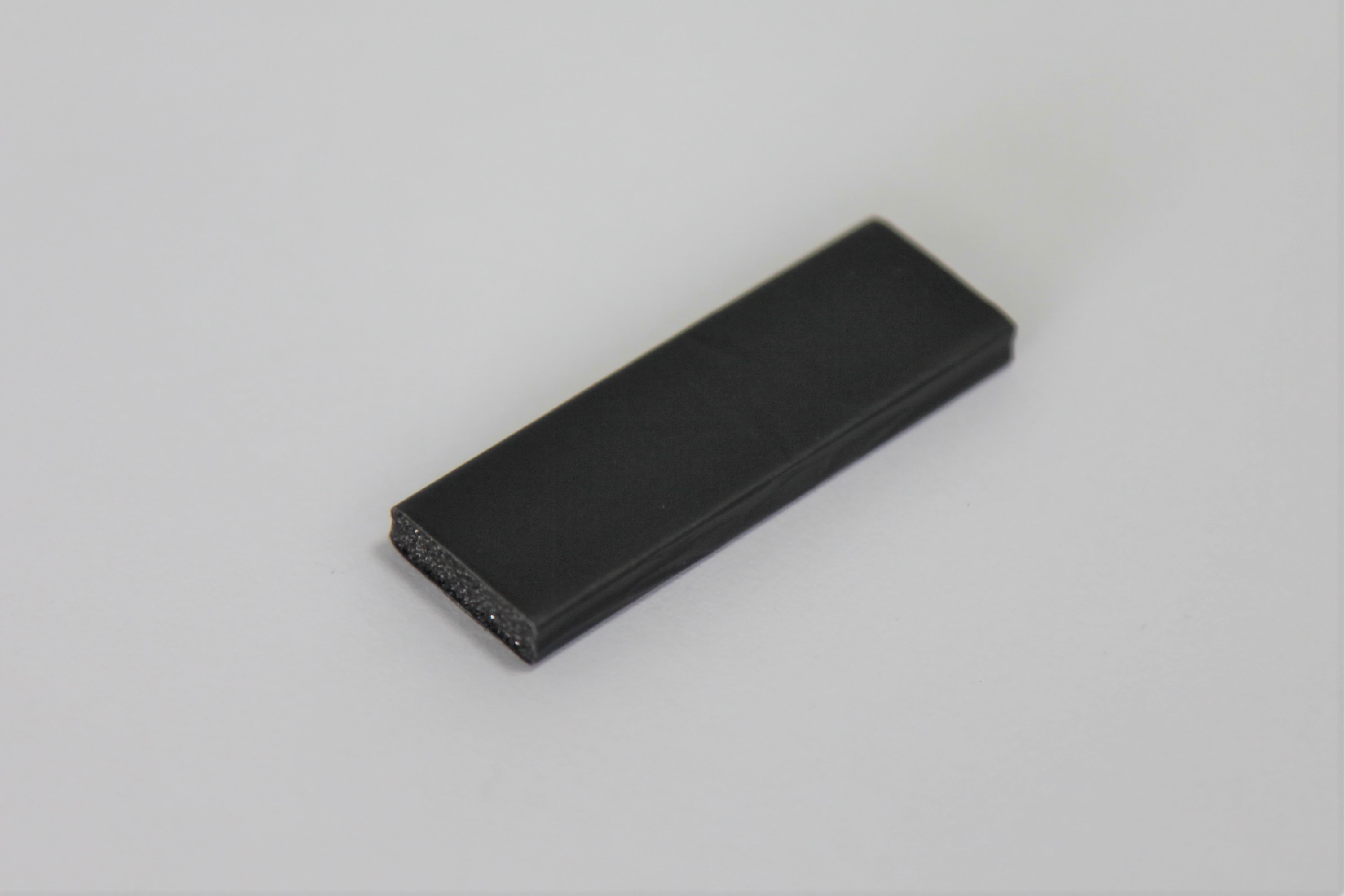

TCF Series Thermally Conductive Foam Gasket

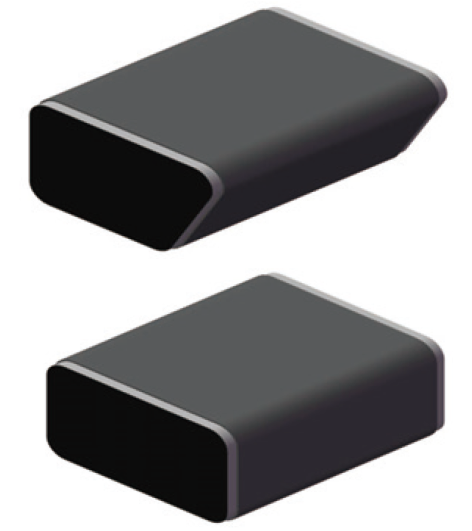

Polyfluid^TM TCF Series Thermally Conductive Foam Gasket is a kind of thermally conductive gasket that consists of PU foam wrapped with synthetic graphite on four sides.

Tape Materials

Tapes

PSA for Foldable Screen

Removable Tape

EMl Tapes and Gaskets

Heat / UV Activation Bonding Film

Thermal Materials

Thermal Interface Materials (TIMs)

Thermal Spreading Sheet

Nano Thermal Insulation Film

EMI/EMC Materials

EMI Shielding and Grounding Tapes

Electromagnetic Wave Absorbing Solutions

Foam Materials

Polyurethane (PU) Foam

Acrylic Foam

Acrylic Foam PA Series

Water-Proof Foam

Light-Blocking Foam

Acoustic Damping Foam

Silicone Foam/Rubber

Conductive Foam

Ultra-soft Foam

Ultra-soft Foam Tape

Label Materials

Labels

Description

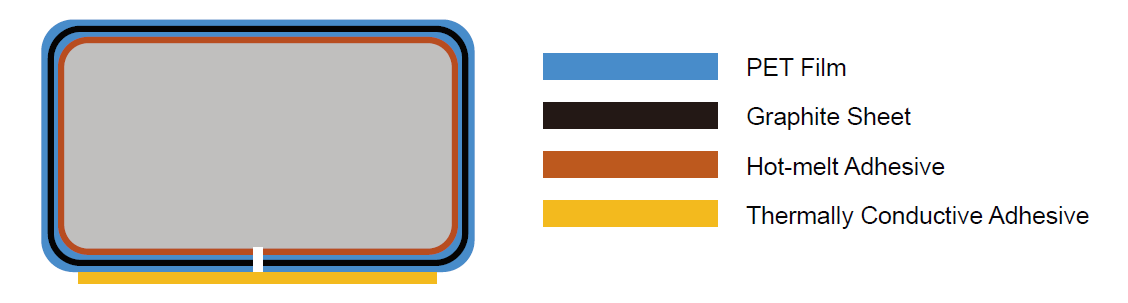

Polyfluid^TM TCF Series Thermally Conductive Foam Gasket is a type of thermally conductive gasket that consists of PU foam wrapped with synthetic graphite on four sides.

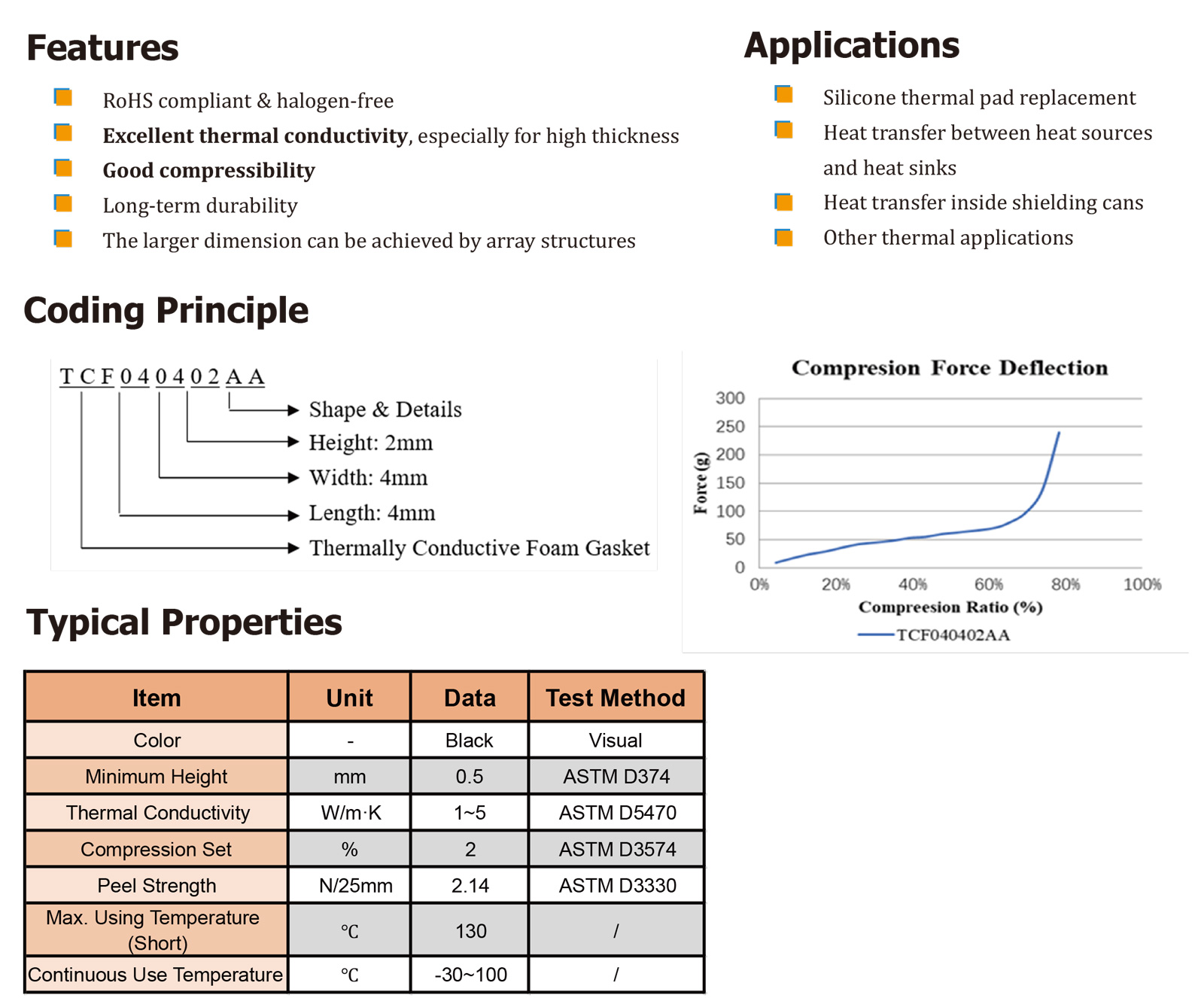

Features

RoHS compliant & halogen-free
Excellent thermal conductivity, especially for high thickness
Good compressibility
Long-term durability
The larger dimension can be achieved by array structures

Applications

Silicone thermal pad replacement
Heat transfer between heat sources
and heat sinks
Heat transfer inside shielding cans
Other thermal applications

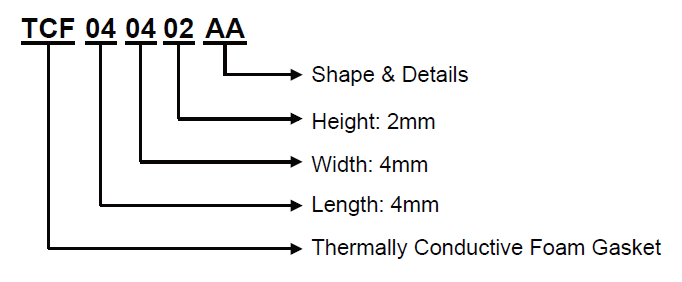

Coding Principle

Typical Properties

Item	Unit	Data	Test Method
Color	-	Black	Visual
Minimum Height	mm	0.5	ASTM D374
Thermal Conductivity	W/m K	1~5	ASTM D5470
Compression Set	%	2	ASTM D3574
Peel Strength	N/25mm	2.14	ASTM D3330
Max. Using Temperature (Short)	℃	130	/
Continuous Use Temperature	℃	-30~100	/
