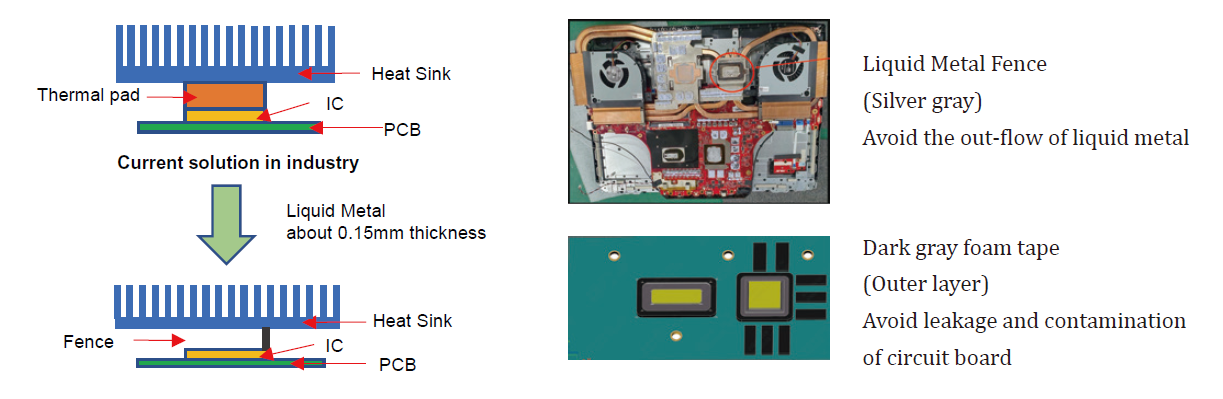

PolyplateTM DRG-01L liquid metal thermal paste is a mushy thermal interface material composed of pure metal. With ultra-high thermal conductivity and good stability surpassing conventional thermal interface materials, it is widely used for efficient heat dissipation of electronic devices at working conditions of high temperature and large heat flux.
| Properties | Unit | DRG-01L | Test Method |
| Color | / | Silver | Visual |
| Specific Gravity | g/cm³ | 6.5 | ASTM D792 |
| Viscosity | mPa·s | 24 | ASTM D445 |
| Density | g/cm³ | 6.2 | ASTM D792 |
| Melting point | ℃ | 10 | ASTM D792 |
| Boiling point | ℃ | 2000 | / |
| Thermal Conductivity | W/m·k | 20-100 | ASTM D5470 |
| Usage Temperature | ℃ | -40~200 | ASTM D257 |
