TGL 30D Silicone Thermally Conductive Gel
SG offers a variety of adhesive tapes made of PET, Non-woven, Foam, PI substrates coated with acrylic, silicone, rubber, hot melting, thermal transform adhesive. Available in variety of widths, lengths and release liners for specific needs, designed for special environment in industry, commerce and family applications.
*First Name
*Last Name
*Email
*Company
*How can we help?
*How do you plan to use this product?
Expected Annual Volume

Description

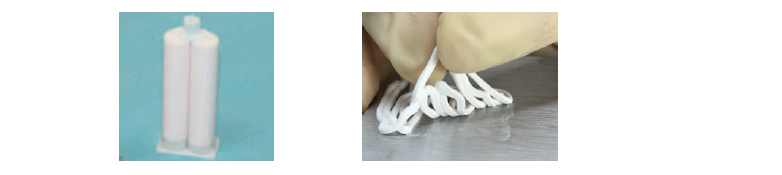

PolyfluidTM TGL 30D Silicone Thermally Conductive Gel is a pre-curing and compliant new thermally interface material, and suitable for electronic fields with cooling requirements. This material can conform to multiple component heights, and offers excellent thermal performance and low contact thermal resistance. After curing, it is easy to peel off without contaminating components, facilitating subsequent repairs.

Features

  • High thermal conductivity and ultra low thermal impedance
  • Low compression stress
  • Good flowability and wettability for reducing thermal resistance effectively
  • Highly conformable to uneven and rough surfaces
  • Compliance with RoHS requirements
  • Long term stability and reliability
  • Compatible with Form-in-Place Machine
  • Easy for assembly and reworkable

Applications

  • High power CPU & GPU
  • Optical device
  • Power conversion module
  • Power transistor
  • Server
  • Telecommunication device
  • High power LED lighting
  • Consumer electronics

Typical Properties

Item Unit Typical Data Test Method
Composition - Resin & Ceramic Powder -
Color - White Visual
Density g/cm3 2 ASTM D792
Thermal Conductivity W/m·K 3 ASTM D5470
Hardness shore 00 45 ASTM2240
Volume Resistance Ω·cm ≥10¹² ASTM D257
Dielectric Strength KV/mm >5 ASTM D149
Curing Condition - 30min@120℃ -
Usage Temperature -40~150 -
