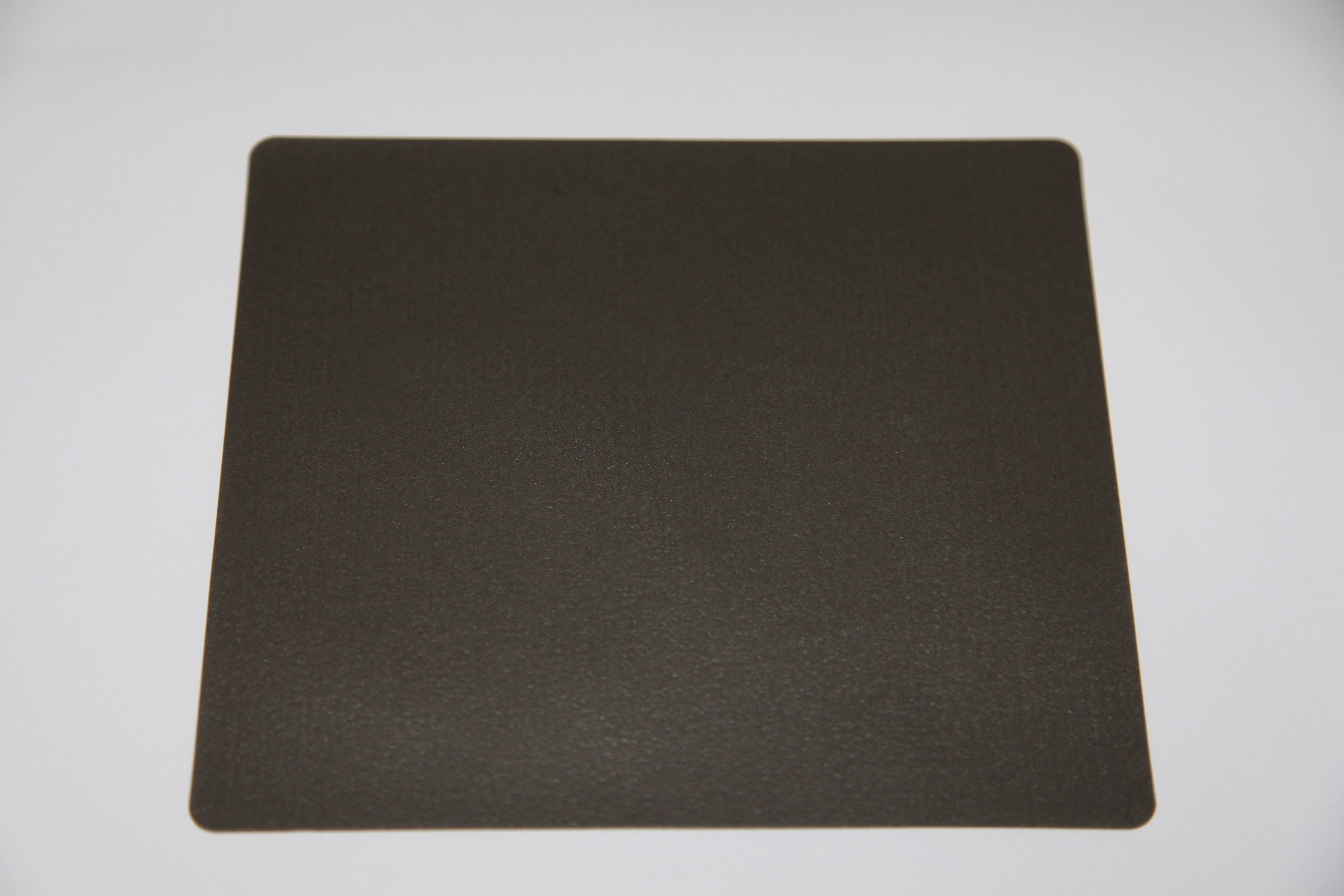

Polyplate™ Acrylic Foam PA Series are extra soft and are available in very thin to moderate thicknesses. They have great self-adhesion ability, low compression set, excellent impact absorption, and vibration resistance.

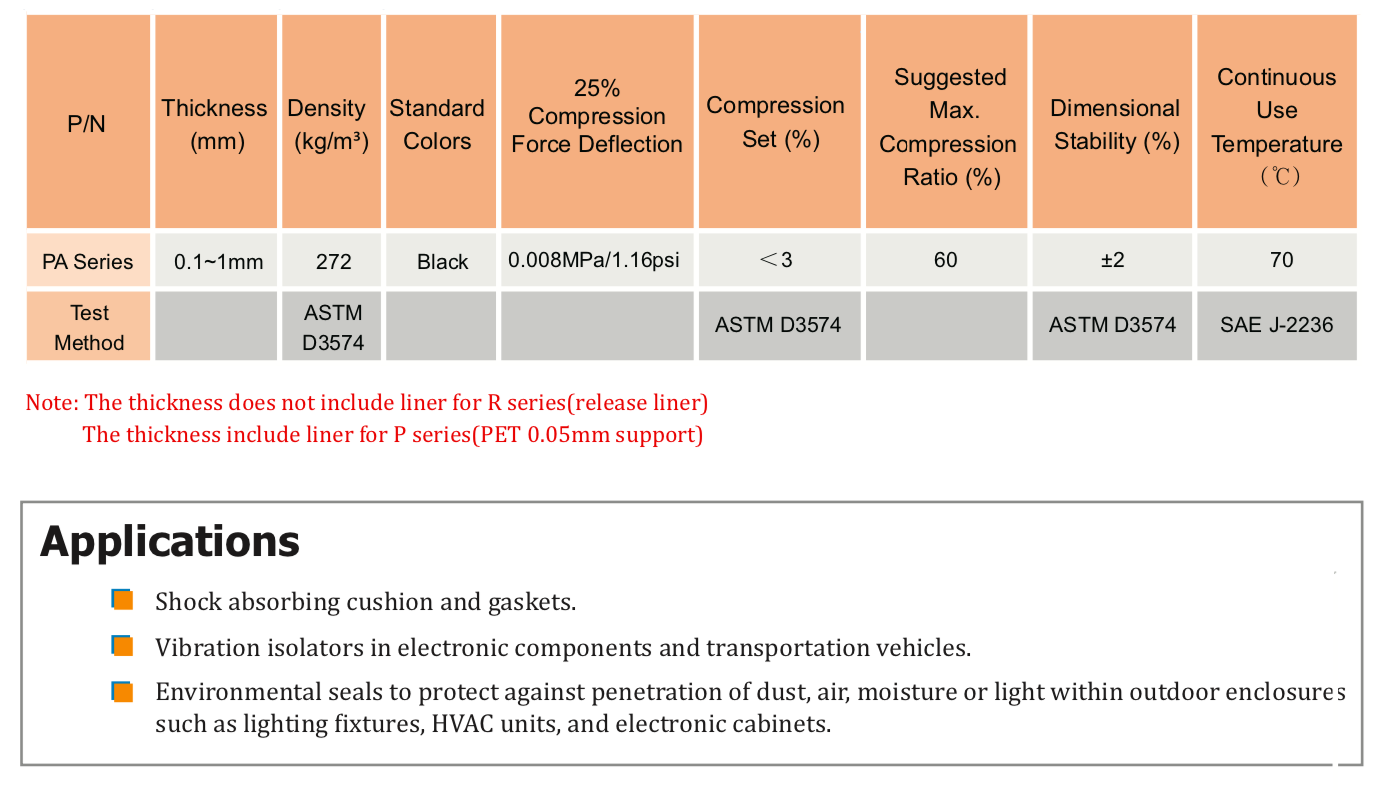

| P/N |
Thickness (mm) |
Density (kg/m³) |
Standard Colors |

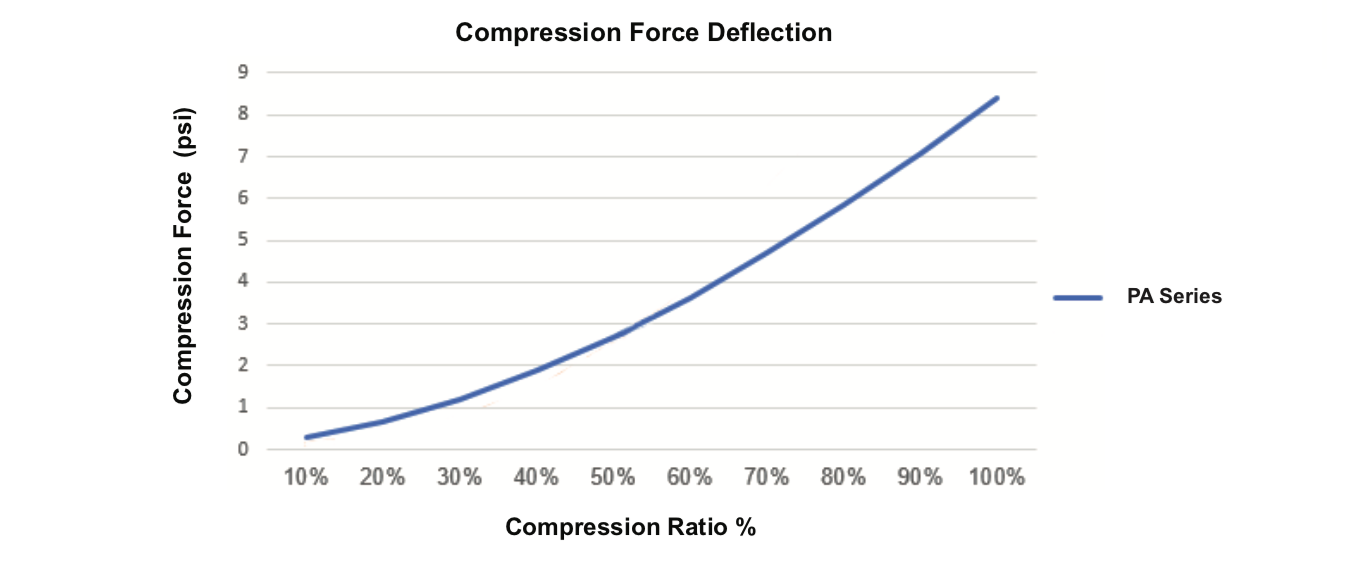

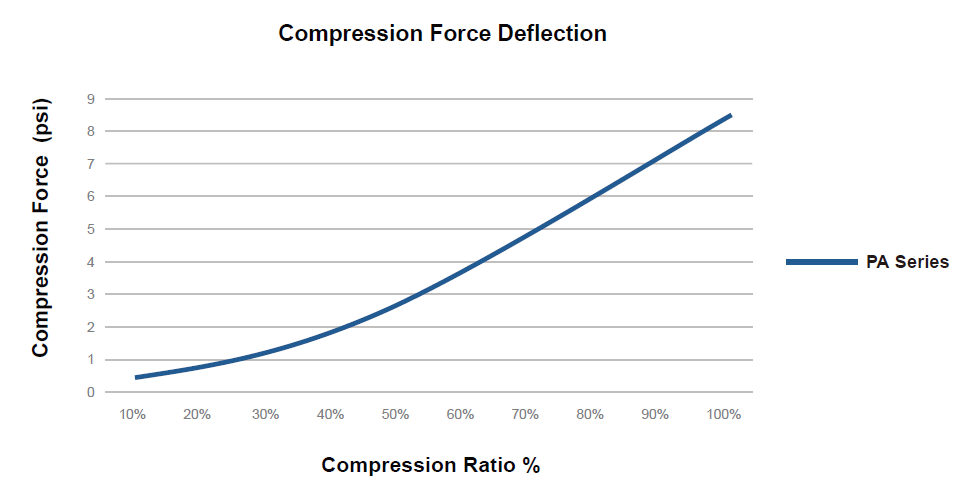

25% Compression Force Deflection |
Compression Set (%) |
Suggested Max. Compression Ratio (%) |
Dimensional Stability (%) |
Continuous Use Temperature(℃) |
|---|---|---|---|---|---|---|---|---|
| PA Series | 0.1~1mm | 272 | Black | 0.008MPa/1.16psi | ＜3 | 60 | ±2 | 70 |
|
Test Method |
ASTM D3574 |
ASTM D3574 | ASTM D3574 | SAE J-2236 |
Note: The thickness does not include liner for R series(release liner)
The thickness include liner for P series(PET 0.05mm support)
