CFU045DB Single-sided Black Foil Conductive Tape (Anti-Repulsion)

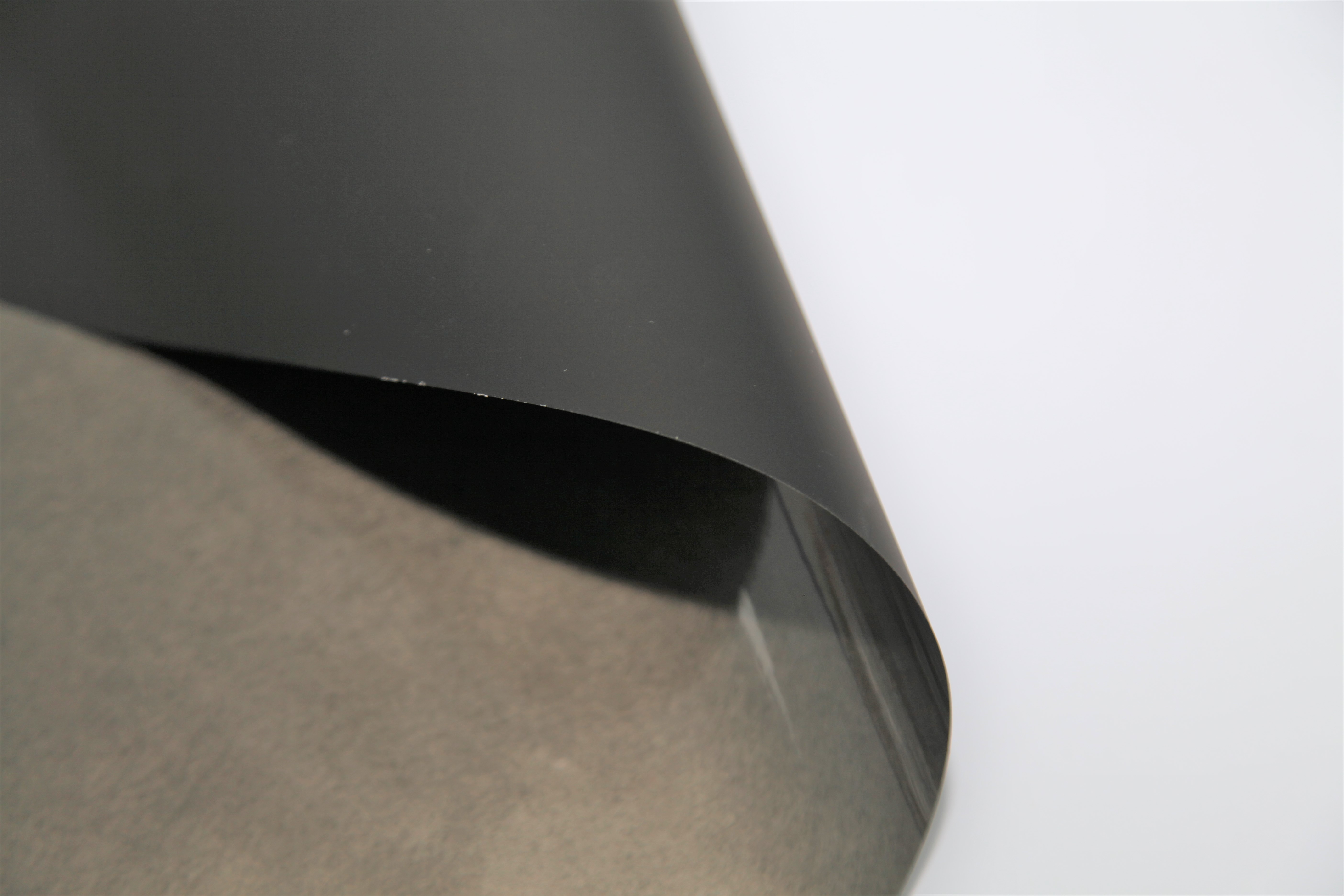

Shieldite^TM CFU045DB single-sided conductive black foil tape consists of a black copper foil backing and a conductive nonwoven embedded in a conductive adhesive. CFU045DB not only provides excellent volume conductivity for reliable contacts to small grounding area but also enhances the physical properties of the tape for good workability.It also has excellent scratch resistance performance and good bending capability.

Tape Materials

Tapes

PSA for Foldable Screen

Removable Tape

EMl Tapes and Gaskets

Heat / UV Activation Bonding Film

Thermal Materials

Thermal Interface Materials (TIMs)

Thermal Spreading Sheet

Nano Thermal Insulation Film

EMI/EMC Materials

EMI Shielding and Grounding Tapes

Electromagnetic Wave Absorbing Solutions

Foam Materials

Polyurethane (PU) Foam

Acrylic Foam

Acrylic Foam PA Series

Water-Proof Foam

Light-Blocking Foam

Acoustic Damping Foam

Silicone Foam/Rubber

Conductive Foam

Ultra-soft Foam

Ultra-soft Foam Tape

Label Materials

Labels

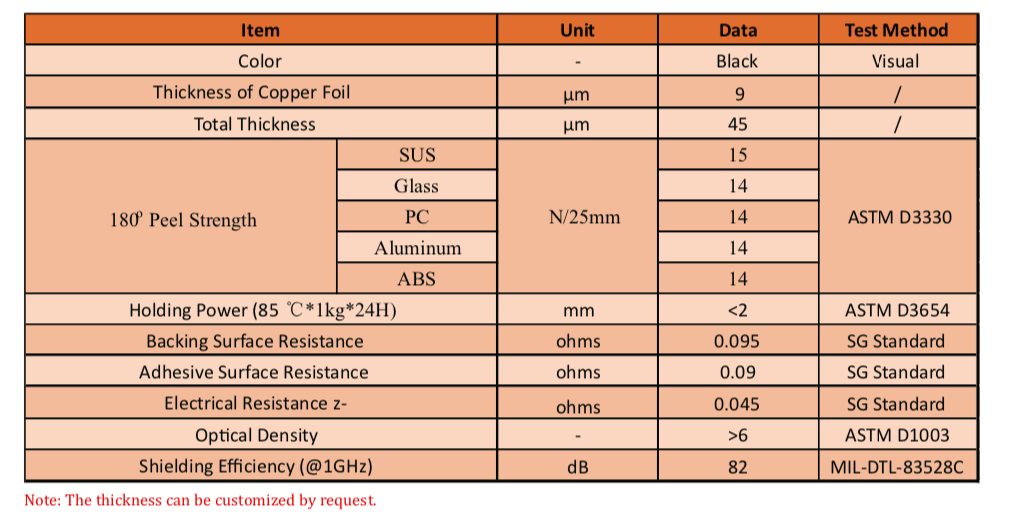

Item		Unit	Data	Test Method
Color		-	Black	Visual
Thickness of Copper Foil		μm	9	/
Total Thickness		μm	45	/
180° Peel Strength	SUS	N/25mm	15	ASTM D3330
	Glass		14
	PC		14
	Aluminum		14
	ABS		14
Holding Power (85°C1kg24H)		mm	<2	ASTM D3654
Backing Surface Resistance		ohms	0.095	SG Standard
Adhesive Surface Resistance		ohms	0.09	SG Standard
Electrical Resistance z-		ohms	0.045	SG Standard
Optical Density		-	>6	ASTM D1003
Shielding Efficiency (@1GHz)		dB	82	MIL-DTL-83528C

Note:The thickness can be customized by request.
