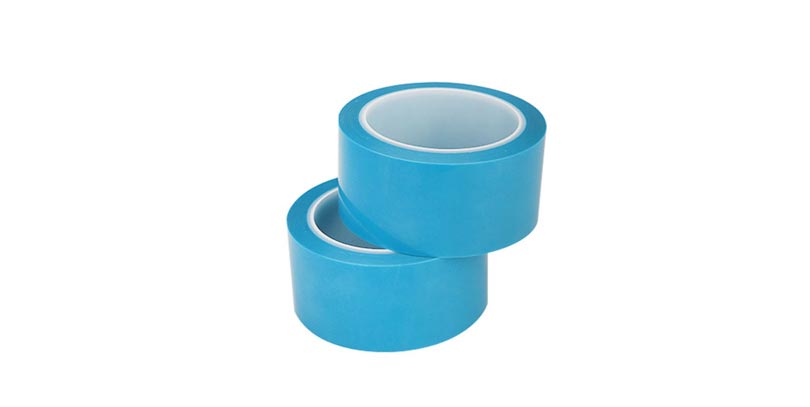

TT Series Thermally Conductive Tape is a kind of acrylic pressure-sensitive adhesive loaded with high thermally conductive ceramic fillers. TT series improves the heat conduction between heat-generating components and heat sinks due to its good thermal conductivity. With its excellent adhesive performance and low thermal resistance, it can replace thermal grease and mechanically fixing methods.
| Item | Unit | Data | Test Method | |
|---|---|---|---|---|
|
Standard Thickness |
Nano Coating Polyester Thermal Conductive Tape |
mm | 0.01 | ASTM D374 |
| Graphite Coated with Aerogel | 0.31 | |||
| Acrylic Adhesive | 0.01 | |||
| Thermal Conductivity of Graphite Sheet | W/m.K | In-plane: 300 | ASTM C518-04 | |
| Vertical:0.05 | ASTM D5470 | |||
| Infrared Emissivity of Nano Radiating Coating | / | 0.95 | ASTM C1371 | |
| 180° Peel Strength @SUS | N/Inch | ＞5 | ASTM D3330 | |
| Volume Resistivity | Ω.cm | 1.0×10¹⁰ | ASTM D257 | |
| Dielectric Strength | KV/mm | ＞2 | ASTM D149 | |
| Working Temperature range | ℃ | -20~120℃ | / | |
