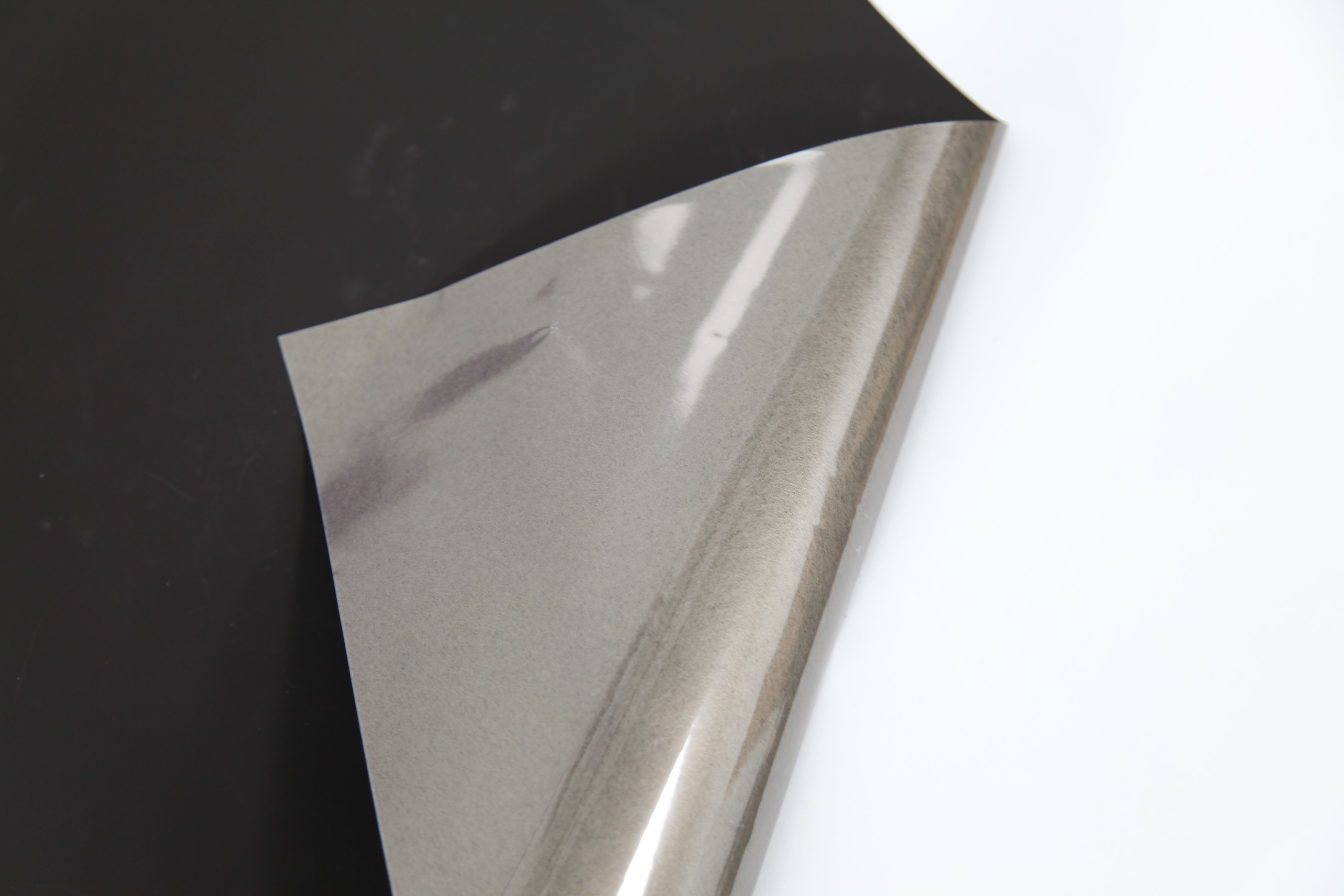

CF045DB Single-sided Black Conductive Fabric Tape (Anti-Repulsion)

Shieldite^TM CF045DB fabric tape consists of conductive fabric with black coating on top and backed with a layer of conductive adhesive. This black tape provides excellent light blocking and anti-scratch performance. CF045DB not only has excellent volume conductivity for reliable contacts to small grounding area but also enhances the physical properties of the tape for good workability. It is soft and has excellent bending performance.

Tape Materials

Tapes

PSA for Foldable Screen

Removable Tape

EMl Tapes and Gaskets

Heat / UV Activation Bonding Film

Thermal Materials

Thermal Interface Materials (TIMs)

Thermal Spreading Sheet

Nano Thermal Insulation Film

EMI/EMC Materials

EMI Shielding and Grounding Tapes

Electromagnetic Wave Absorbing Solutions

Foam Materials

Polyurethane (PU) Foam

Acrylic Foam

Acrylic Foam PA Series

Water-Proof Foam

Light-Blocking Foam

Acoustic Damping Foam

Silicone Foam/Rubber

Conductive Foam

Ultra-soft Foam

Ultra-soft Foam Tape

Label Materials

Labels

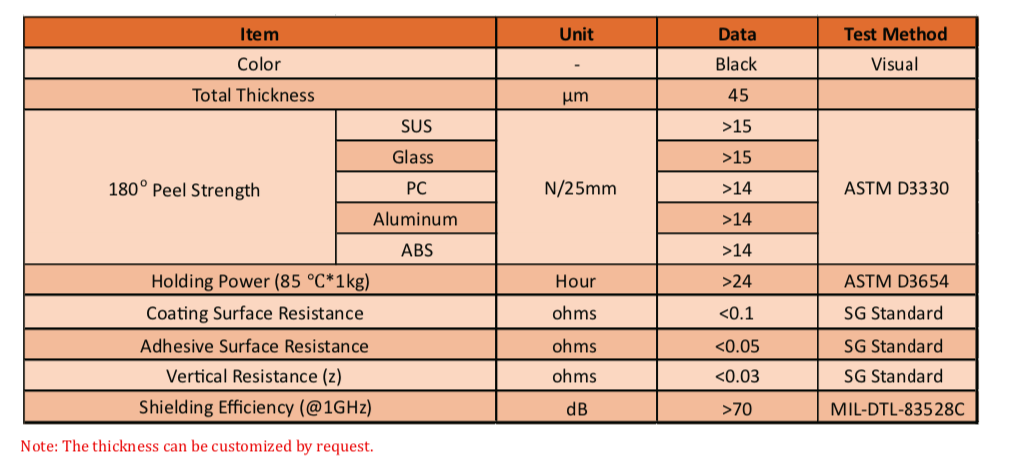

Item		Unit	Data	Test Method
Color		-	Black	Visual
Total Thickness		μm	45
180° Peel Strength	SUS	N/25mm	>15	ASTM D3330
	Glass		>15
	PC		>14
	Aluminum		>14
	ABS		>14
Holding Power (85°C*1kg)		Hour	>24	ASTM D3654
Coating Surface Resistance		ohms	<0.1	SG Standard
Adhesive Surface Resistance		ohms	<0.05	SG Standard
Vertical Resistance (z)		ohms	<0.03	SG Standard
Shielding Efficiency (@1GHz)		dB	>70	MIL-DTL-83528C

Note:The thickness can be customized by request.
