TIF Series Thermal Insulation Film is mainly composed of aerogel, which is the lightest solid material in the world and has the best performance in thermal insulation. The thermal conductivity of the film is as low as 0.02 W/m·K due to the absence of convection within the material.

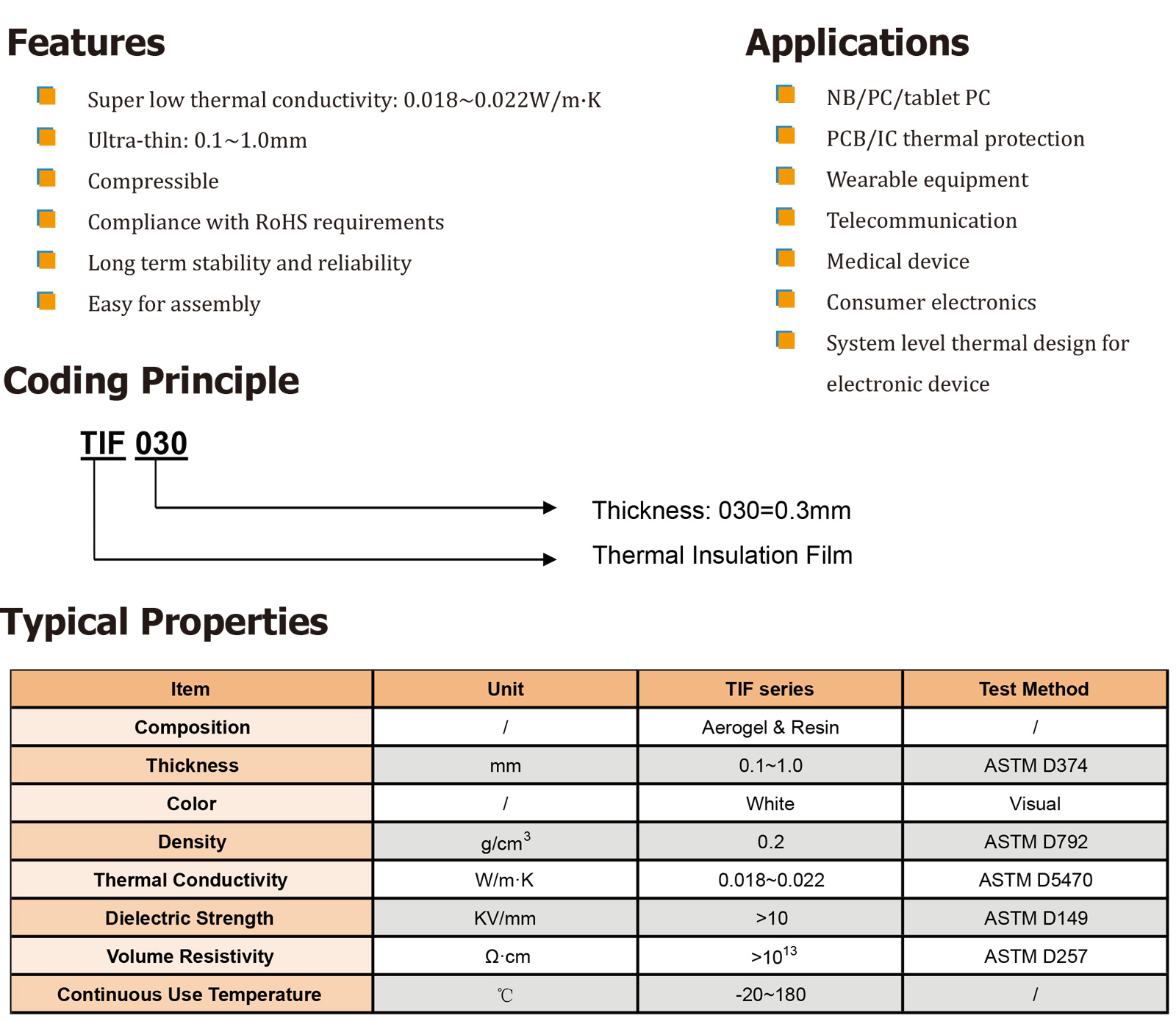

| Item | Unit | TIF series | Test Method |
| Composition | / | Aerogel & Resin | / |
| Thickness | mm | 0.1~1.0 | ASTM D374 |
| Color | / | White | Visual |
| Density | g/cm³ | 0.2 | ASTM D792 |
| Thermal Conductivity | W/m·K | 0.018 - 0.022 | ASTM D5470 |
| Dielectric Strength | Kv/mm | >10 | ASTM D149 |
| Volume Resistivity | Ω·cm | >10¹³ | ASTM D257 |
| Continuous Use Temperature | ℃ | -20~180 | / |

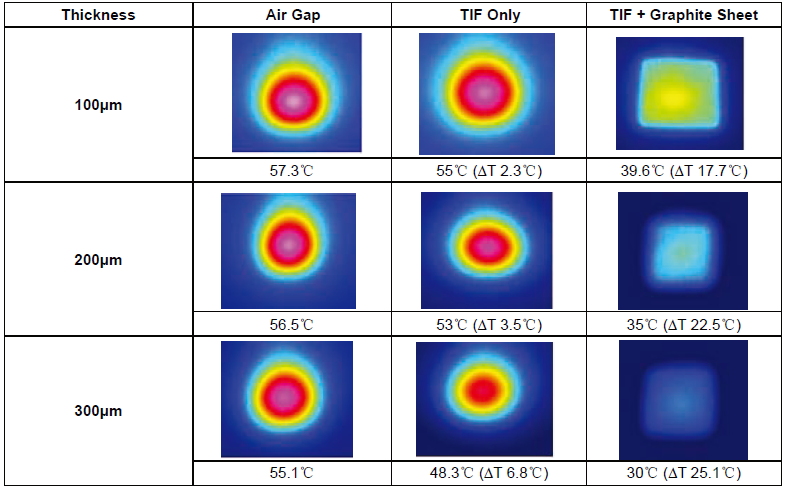

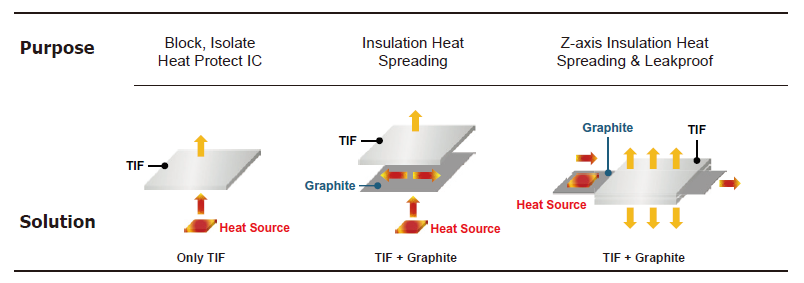

Note: 1. It is recommended to combine with graphite for thermal dissipation in application.
2. Dimensions and designs are customised according to practical application.
