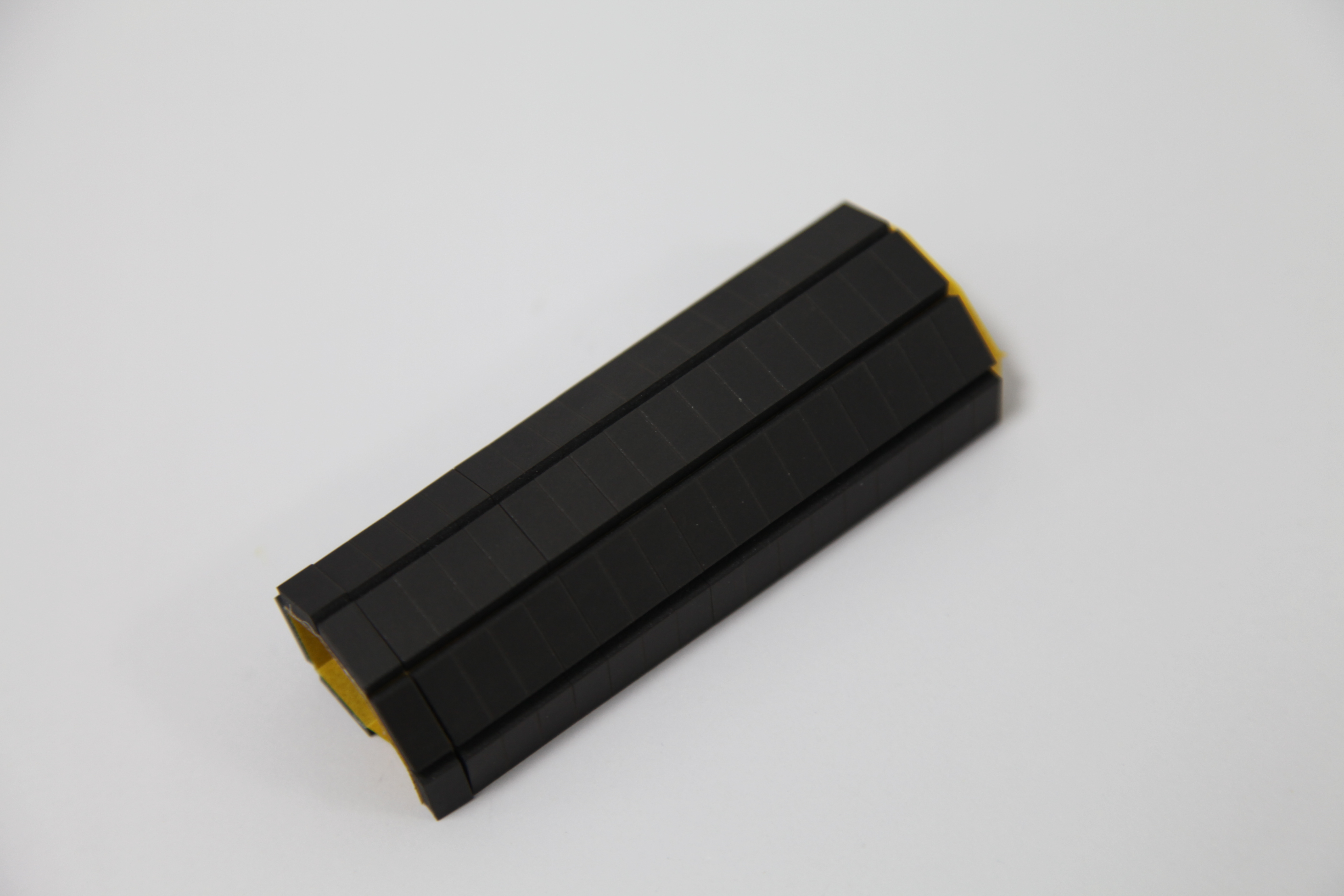

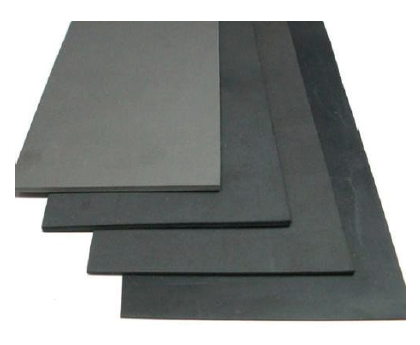

Shieldite™ EPH series is a high frequency absorbing material, which is made of high permeability alloy powder and rubber by mixing, dispersing and pressing. The material can reduce electromagnetic radiation by converting electromagnetic wave emitted by electronic equipment into heat energy by means of insulation loss, magnetic loss and impedance loss.
| Properties | Unit | EPH 075Ka | EPH 100C | EPH 100K | EPH 100XKu | EPH 110 | EPH 150Ku | EPH 160X | Test Method | |
|---|---|---|---|---|---|---|---|---|---|---|
| Color | N/A | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Dark Grey | Visual | |
|
Total Thickness without Release Liner |
mm | 0.75± 0.05 | 1.0± 0.1 | 1.0± 0.1 | 1.0± 0.1 | 1.0± 0.1 | 1.5± 0.1 | 1.6± 0.1 | ASTM D374 | |
|
Thickness (Acrylic Adhesive) |
mm | 0.05± 0.005 | 0.05± 0.005 | 0.05± 0.005 | 0.05± 0.005 | 0.05± 0.005 | 0.05± 0.005 | 0.05± 0.005 | ASTM D374 | |

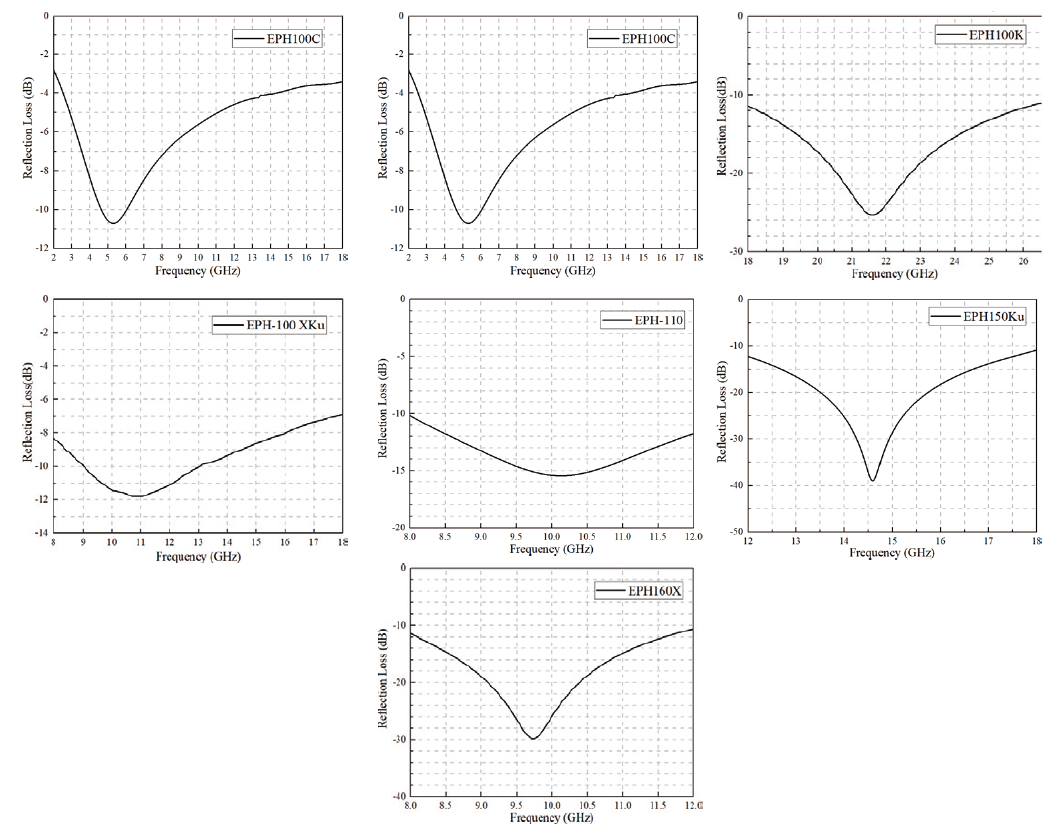

| Frequency Range | GHz | 26.5～40 | 2～18 | 18～26.5 | 8～18 | 8～12 | 12～18 | 8～12 | / | |
| Density | g/cm3 | 2.9 | 4.5 | 3.2 | 4.3 | 4 | 2.8 | 3.3 | ASTM 792 | |
| Volume Resistivity | ohm-cm | ＞10¹⁰ | ＞10⁸ | ＞10¹⁰ | ＞10⁸ | ＞10⁸ | ＞10¹⁰ |
10⁹
|
ASTM D257 | |
| Service Temperature | ℃ | -40～150 | -40～150 | -40～150 | -40～150 | -40～150 | -40～150 | -40～150 | SG Method | |
| Hardness | Shore A | 50 | 85 | 55 | 70 | 65 | 50 | 55 | ASTM D2240 | |
| Flame Rating | / | V0 | V0 | V0 | V0 | V0 | V0 | V0 | UL 94 | |
|
Standard Dimensions |
Width | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | / |
| Width | mm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | / | |
