PolyplateTM CSG Series Thermal Spreading and Electrically Conductive Sheet is a specially designed composite material which has a distinct structure of different functional layers for thermal and electrical solutions.

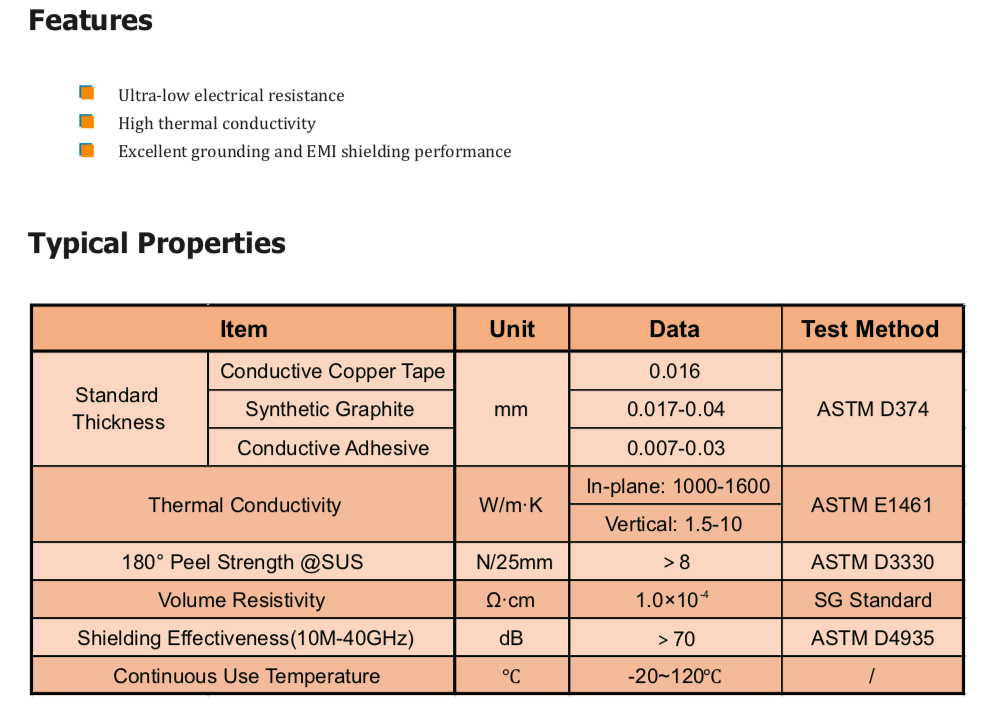

| Item | Unit | Data | Test Method | |
|---|---|---|---|---|
|
Standard Thickness |
Conductive Copper Tape | mm | 0.016 | ASTM D374 |
| Synthetic Graphite | 0.017-0.04 | |||
| Conductive Adhesive | 0.007-0.03 | |||
| Thermal Conductivity | W/m·K | In-plane: 1000-1600 | ASTM E1461 | |
| Vertical: 1.5-10 | ||||
| 180° Peel Strength @SUS | N/25mm | > 8 | ASTM D3330 | |
| Volume Resistivity | Ω·cm | 1.0×10⁻⁴ | SG Standard | |
| Shielding Effectiveness(10M-40GHz) | dB | > 70 | ASTM D4935 | |
| Continuous Use Temperature | °C | -20~120°C | / | |
