Description

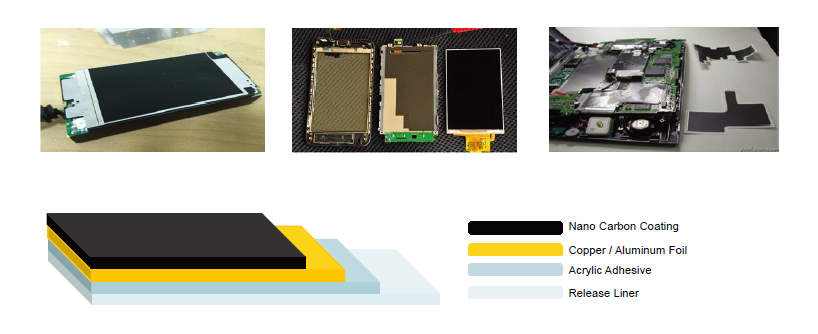

Polyplate^TM TE Series Nano Radiating Film is consisted of a solid nano carbon coating, to the top surface an Al/Cu foil, and an acrylic adhesive with release liner on the backside. The nano carbon coating improves the distribution of heat evenly across the surface of the material due to the high thermal conductivity of the carbon atoms. The nano carbon can dissipate the heat from the source fast and effectively by transferring the heat to infrared RF. SG Nano Radiating Film are specifically used for quick heat conduction through the thickness (Z axis) by metal base materials.

Features

Excellent thermal radiation efficiency, infrared radiance reaching more than 0.9W
Distributes heat evenly, high thermal conductivity in plane (X,Y axis)
Excellent thermal conductivity through metal thickness (Z axis)
Lower thermal resistance than other commercially available thermal products
Product properties allow for flexibility and ease of fabrication (die cutting) with no edging required
Thickness range from 0.035mm-0.3mm (including adhesive)
EMI shielding and absorption properties help protect sensitive electronic parts

Material P/N	Continuous Use Temperature	Total Thickness (mm)	Heat Emissivity Efficiency (W/m²)	Thermal Conductivity -XY W/(m·k)	Thermal Diffusivity (cm²/s)	Electrical resistance -XY (ohms)	180° Peel strength (N/25mm)
TE-A060AL	-20~120(°C )	0.060±0.006	0.95	300-350	4-8	1 x 10⁵	> 10
TE-A075AL	-20~120(°C ) -4~248(°F)	0.075±0.007	0.95	300-350	4-8	1 x 10⁵	> 10
TE-A100AL	-20~120(°C ) -4~248(°F)	0.100±0.010	0.95	300-350	4-8	1 x 10⁵	> 10
TE-A200AL	-20~120(°C ) -4~248(°F)	0.200±0.020	0.95	300-350	4-8	1 x 10⁵	> 10
TE-A250AL	-20~120(°C ) -4~248(°F)	0.250±0.025	0.95	300-350	4-8	1 x 10⁵	> 10
TE-C035CU	-20~130(°C ) -4~166(°F)	0.035±0.005	0.95	400-450	6-10	1 x 10⁵	> 10
TE-C045CU	-20~130(°C ) -4~166(°F)	0.045±0.005	0.95	400-450	6-10	1 x 10⁵	> 10
TE-C060CU	-20~130(°C ) -4~166(°F)	0.060±0.005	0.95	400-450	6-10	1 x 10⁵	> 10
TE-C080CU	-20~130(°C ) -4~166(°F)	0.080±0.008	0.95	400-450	6-10	1 x 10⁵	> 10
TE-C100CU	-20~130(°C ) -4~166(°F)	0.100±0.010	0.95	400-450	6-10	1 x 10⁵	> 10
TE-C130CU	-20~130(°C ) -4~166(°F)	0.130±0.010	0.95	400-450	6-10	1 x 10⁵	> 10
TE-C200CU	-20~130(°C ) -4~166(°F)	0.200±0.020	0.95	400-450	6-10	1 x 10⁵	> 10
TE-C300CU	-20~130(°C ) -4~166(°F)	0.300±0.030	0.95	400-450	6-10	1 x 10⁵	> 10
Test Standard	N/A	ASTM D1000	ASTM C1371	ASTM E1461	ASTM E1461	SG Standard	ASTM D3330

Note:The thickness can be customized by request.
