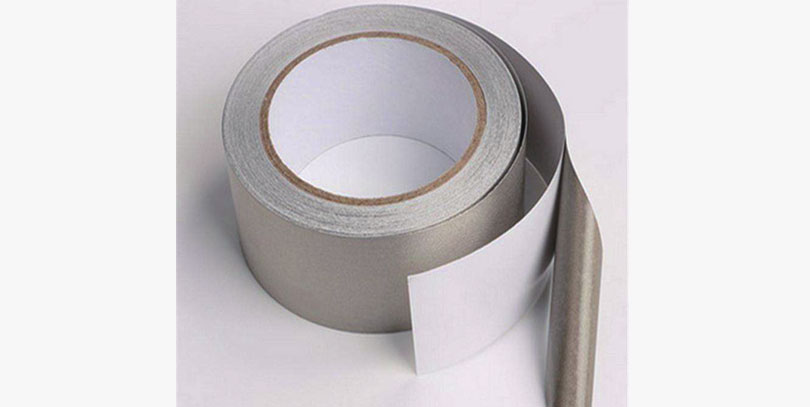

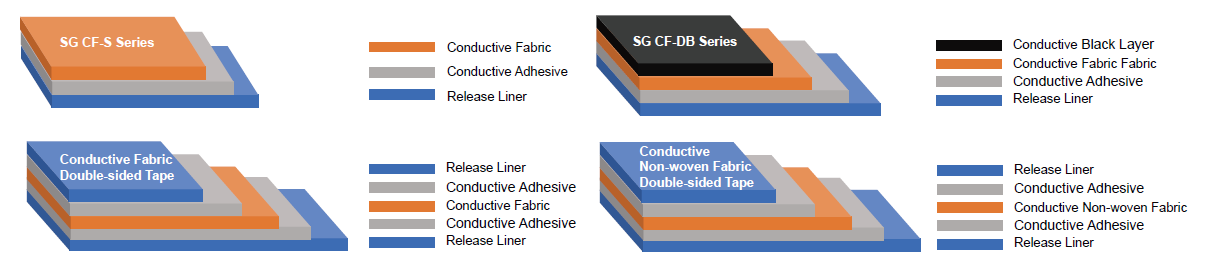

ShielditeTMcconductive fabric tape consists of Cu/Ni plated conductive fabric/non-woven with a unique electrically
conductive pressure sensitive acrylic adhesive.

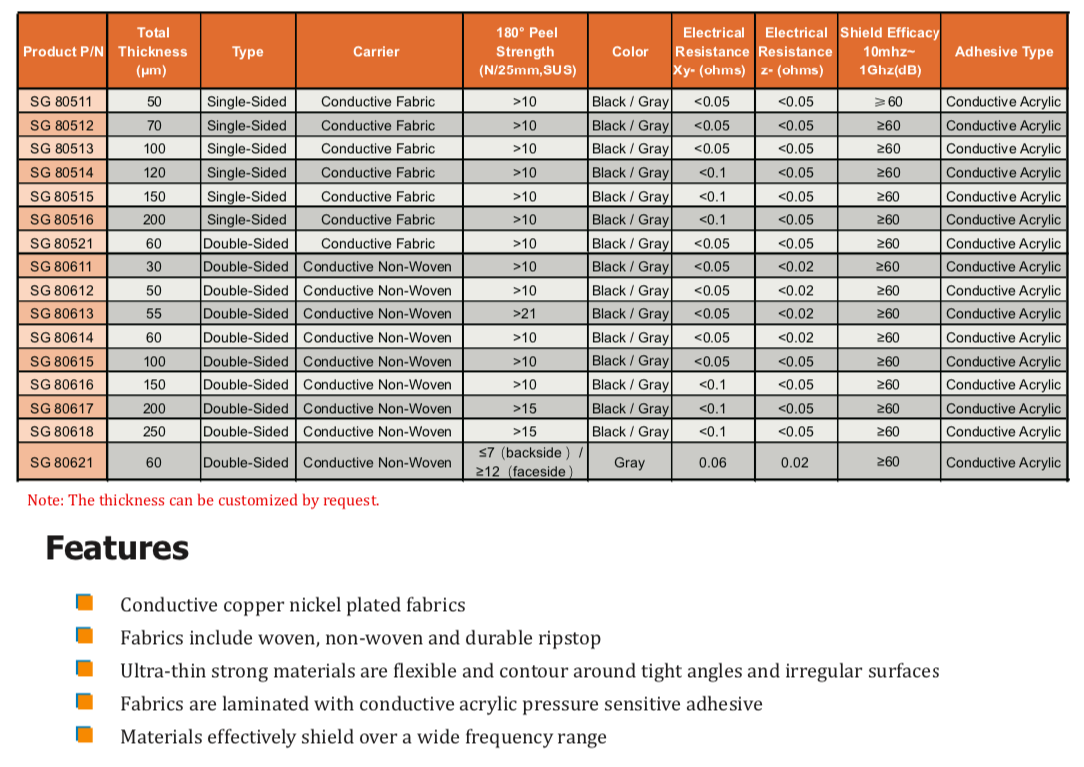

| Product P/N |
Total Thickness (μm) |
Type | Carrier |
180° Peel Strength (N/25mm, SUS) |
Color |
Electrical Resistance XY-(ohms) |
Electrical Resistance Z-(ohms) |
Shield Efficacy 10mhz~1Ghz(dB) |
Adhesive Type | |
|---|---|---|---|---|---|---|---|---|---|---|
| SG CF025S | 25 | Single-Sided | Conductive Fabric | 5 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG CF030S | 30 | Single-Sided | Conductive Fabric | 8 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG CF050S | 50 | Single-Sided | Conductive Fabric | 10 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG CF0100S | 100 | Single-Sided | Conductive Fabric | 15 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG CF150S | 150 | Single-Sided | Conductive Fabric | 20 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG CF035DB | 35 | Single-Sided | Conductive Fabric | 11 | Black | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG CF045DB | 45 | Single-Sided | Conductive Fabric | 12 | Black | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG CF080DB | 80 | Single-Sided | Conductive Fabric | 15 | Black | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG CF245DB | 245 | Single-Sided | Conductive Fabric | 20 | Black | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 8517 | 30 | Double-Sided | Conductive Fabric | 9 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 8518H | 50 | Double-Sided | Conductive Fabric | 15 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 2075F | 75 | Double-Sided | Conductive Fabric | 15 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 2100F | 100 | Double-Sided | Conductive Fabric | 18 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 2130F | 130 | Double-Sided | Conductive Fabric | 18 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 2130F-R | 130 | Double-Sided |
Recycled Conductive Fabric |
18 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 2215F | 150 | Double-Sided | Conductive Fabric | 25 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 2120F | 200 | Double-Sided | Conductive Fabric | 25 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 2223F | 230 | Double-Sided | Conductive Fabric | 23 | Gray | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 2050BF | 50 | Double-Sided | Conductive Fabric | 18 | Black | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 80622 | 60 | Double-Sided | Conductive Fabric | 9 | Black | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 80624 | 80 | Double-Sided | Conductive Fabric | 10 | Black | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 80627 | 260 | Double-Sided | Conductive Fabric | 18 | Black | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
| SG 806245 | 400 | Double-Sided | Conductive Fabric | 19 | Black | <0.1 | <0.05 | ≥60 | Conductive Acrylic | |
