Electrical Release Tape

SG 80324 is a release on demand tape made by coating an electrical debonded pressure sensitive adhesive onto copper foil. The adhesive can provide robust adhesion on various substrates including metal, plastic and painted surface. When adhered on electrically conductive substrates, the bonding joint can be quickly dismantled by applying a DC electrical potential across the electric release tape for a short time.

Tape Materials

Tapes

Thermal Materials

Thermal Interface Materials (TIMs)

Thermal Spreading Sheet

Nano Thermal Insulation Film

TIF Series Ultra-thin Nano Thermal Insulation Film

EMI/EMC Materials

EMI Shielding and Grounding Tapes

EMI Shielding and Grounding Gaskets

Electromagnetic Wave Absorbing Solutions

Foam Materials

Polyurethane (PU) Foam

Acrylic Foam

PA Series Acrylic Foam

Water-Proof Foam

Light-Blocking Foam

Acoustic Damping Foam

Silicone Foam

SF-S2 Series Microcellular Silicone Foam

Conductive Foam

Label Materials

Labels

Product Comparison

Samples	Total Thickness (um)	Structure (um)	Measurement	Original			After electric release
				Original			180°Peel RT (N/inch, 300mm/min)
				T0 Dwell 20mins		Holding Power	After 10V 10S	After 10V 60S		After 20V 20S	After 30V 30S
				SUS	AL	SUS	SUS	SUS	Al	SUS	SUS
V (Competitor)	100	50Al + 50PSA	TDS	15.9 (Dwell 30min)	14.4 (Dwell 30min)	0.8mm (80℃ 24h)	0	-	-	-	-
L (Competitor)	100	50Al + 50PSA	TDS	17 (Dwell 24hr)	12.1 (Dwell 24hr)	<1mm (40℃ 20h)	-	0.02	0.01	-	-
N (Competitor)	150	-	Information	13	-	-	-	-	-	-	Small (Without real date)
M (Competitor)	-	-	Information	9	-	-	-	Small (Without real date) 9V	-	-	-
SG 80324	50	20Cu + 30PSA	SG internal	14	9	<0.5mm （85℃ 24h）	3.3	3.0	2.7	0	0

SG 80324 Product Features

Featuring high bonding strength on electrically conductive substrates and can be subsequently de-bonded by applying a DC electrical potential across the electric release tape for a short time.
Temporary fixing for processing where components are too sensitive to heat for thermal release adhesive or blocking transmission of UV radiation for UV release adhesive.
Electrical release tape can be reused for 2-3 times.

Application Performance Testing

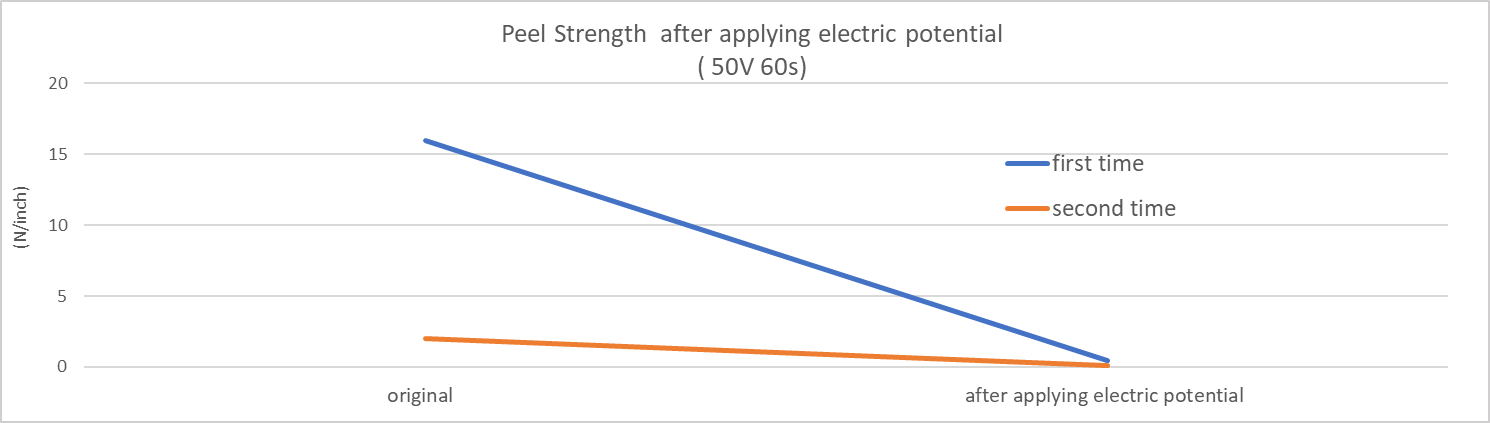

	180°Peel Strength (N/25inch)
	original	after applying electric potential ( 50V 60s)
First time	16	0.47
Second time	2	0.1
